Bean Context #1: Containment Only

The "containment" portion of the Extensible Runtime Containment and Services Protocol is defined by the BeanContext interface. In its most basic form, a BeanContext is used to logically group a set of related java beans, bean contexts, or arbitrary objects. JavaBeans nested into a BeanContext are known as "child" beans. Once nested, a child bean can query its BeanContext for various membership information, as illustrated in the following examples.

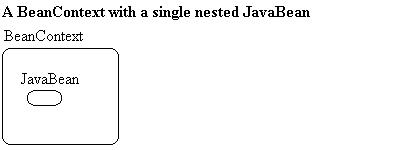

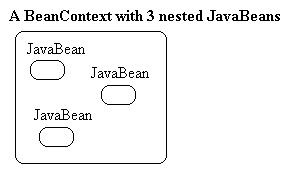

Here are some possible BeanContext containment scenarios:

The sample code presented in this chapter uses instances of the BeanContextSupport helper class to provide the basic BeanContext functionality. A BeanContextSupport object is simply a concrete implementation of the BeanContext interface.

With a BeanContextSupport instance, it is possible to:

• Add an object, bean, or BeanContext: boolean add(Object o)
• Remove an object, bean, or BeanContext: boolean remove(Object o)
• Add a BeanContextMembershipListener: void addBeanContextMembershipListener(BeanContextMembershipListener bcml)
• Remove a BeanContextMembershipListener: void removeBeanContextMembershipListener(BeanContextMembershipListener bcml)
• Get all JavaBean or BeanContext instances currently nested in this BeanContext as an array or as an Iterator: Object[] toArray(), Object[] toArray(Object[] a), and Iterator iterator()
• Determine whether or not a specified object is currently a child of the BeanContext: boolean contains(Object o)
• Get the number of children currently nested in this BeanContext: int size()
• Determine whether or not the BeanContext currently has zero children: boolean isEmpty()
• Instantiate a new JavaBean instance as a child of the target BeanContext: Object instantiateChild(String beanName)

The following test programs, which are run from the command line, illustrate the use of these methods.

The comments in the source code explain the purpose of each.

File: Example1.java

import java.beans.beancontext.*;

/**
 * A test program that adds a bean to a beancontext, and
 * reports on various aspects of the context's membership state.
 * This program also shows that a bean's getBeanContext() method
 * can be called to get a reference to its enclosing context.
 */
public class Example1 {
    private static BeanContextSupport context = new BeanContextSupport(); // The BeanContext
    private static BeanContextChildSupport bean = new BeanContextChildSupport(); // The JavaBean

    public static void main(String[] args) {
        report();

        // Add the bean to the context
        System.out.println("Adding bean to context...");
        context.add(bean);

        report();
    }

    private static void report() {
        // Print out a report of the context's membership state.
        System.out.println("=============================================");

        // Is the context empty?
        System.out.println("Is the context empty? " + context.isEmpty());

        // Has the context been set for the child bean?
        boolean result = (bean.getBeanContext()!=null);
        System.out.println("Does the bean have a context yet? " + result);

        // Number of children in the context
        System.out.println("Number of children in the context: " + context.size());

        // Is the specific bean a member of the context?
        System.out.println("Is the bean a member of the context? " + context.contains(bean));

        // Equality test
        if (bean.getBeanContext() != null) {
            boolean isEqual = (bean.getBeanContext()==context); // true means both references point to the same object
            System.out.println("Contexts are the same? " + isEqual);
        }
        System.out.println("=============================================");
    }
}

Output:

=============================================
Is the context empty? true
Does the bean have a context yet? false
Number of children in the context: 0
Is the bean a member of the context? false
=============================================
Adding bean to context...
=============================================
Is the context empty? false
Does the bean have a context yet? true
Number of children in the context: 1
Is the bean a member of the context? true
Contexts are the same? true
=============================================

File: Example2.java

import java.beans.beancontext.*;

/**
 * Test program that adds 100 beans to a context,
 * and calls size() to report the number of beans
 * currently nested. Finally,
 * this test calls toArray() to get references to
 * all child beans.
 */
public class Example2 {
    public static void main(String[] args) {

        // A BeanContext
        BeanContextSupport context = new BeanContextSupport();

        // Many JavaBeans
        BeanContextChildSupport[] beans = new BeanContextChildSupport[100];

        System.out.println("Number of children in the context: " + context.size());

        // Create the beans and add them to the context
        for (int i = 0; i < beans.length; i++) {
            beans[i] = new BeanContextSupport();
            context.add(beans[i]);
        }
        System.out.println("Number of children in the context: " + context.size());

        // Context now has 100 beans in it, get references to them all
        Object[] children = context.toArray();
        System.out.println("Number of objects retrieved from the context: " + children.length);
    }
}

Output:

Number of children in the context: 0
Number of children in the context: 100
Number of objects retrieved from the context: 100

File: Example3.java

import java.beans.beancontext.*;
import java.io.*;

/**
 * An example of how to use the instantiateChild() convenience method
 * to create a bean automatically nested into a bean context.
 */
public class Example3 {
    public static void main(String[] args) {
        BeanContextSupport context = new BeanContextSupport();
        System.out.println("Number of children nested into the context: " + context.size());

        BeanContextChildSupport child = null;
        try {
            child = (BeanContextChildSupport)context.instantiateChild("java.beans.beancontext.BeanContextChildSupport");
        }
        catch(IOException e){
            System.out.println("IOException occurred: " + e.getMessage());
        }
        catch(ClassNotFoundException e){
            System.out.println("Class not found: " + e.getMessage());
        }
        System.out.println("Number of children nested into the context: " + context.size());
    }
}

Output:

Number of children nested into the context: 0
Number of children nested into the context: 1

BeanContextMembershipEvent Notification

The BeanContext API uses the standard Java event model to register listeners and deliver events. For an overview of this standard event model, refer to Handling Events. For details about handling specific events, see Writing Event Listeners.

In a basic BeanContext, the event classes and interfaces involved are:

• java.beans.beancontext.BeanContextMembershipEvent: Encapsulates the list of children added to, or removed from, the membership of a particular BeanContext. An instance of this event is fired whenever a successful add(), remove(), retainAll(), removeAll(), or clear() is invoked on a given BeanContext instance.
• java.beans.BeanContextMembershipListener: Objects wishing to receive BeanContextMembershipEvents implement this interface. It defines methods void childrenAdded(BeanContextMembershipEvent bcme) and void childrenRemoved(BeanContextMembershipEvent bcme), which are called when a child is added to or removed from a given BeanContext instance.

BeanContextMembershipEvent Notification: Sample Code

File: MembershipTest.java

import java.beans.beancontext.*;

/**
 * A simple test program to illustrate delivery
 * of the BeanContextMembershipEvent.
 */
public class MembershipTest {
    public static void main(String[] args) {
        BeanContextSupport context = new BeanContextSupport(); // the context
        MyMembershipListener listener = new MyMembershipListener();
        BeanContextChildSupport bean = new BeanContextChildSupport(); // a JavaBean
        context.addBeanContextMembershipListener(listener); // now listening!
        context.add(bean);
        context.remove(bean);
    }
}

/**
 * A custom implementation of the BeanContextMembershipListener interface.
 */
class MyMembershipListener implements BeanContextMembershipListener {
    public void childrenAdded(BeanContextMembershipEvent bcme) {
        System.out.println("Another bean has been added to the context.");
    }

    public void childrenRemoved(BeanContextMembershipEvent bcme) {
        System.out.println("A bean has been removed from the context.");
    }
}

Output:

Another bean has been added to the context.
A bean has been removed from the context.

The same example, implemented using an anonymous inner class

import java.beans.beancontext.*;

public class MembershipTest {
    public static void main(String[] args) {
        BeanContextSupport context = new BeanContextSupport();
        context.addBeanContextMembershipListener(new BeanContextMembershipListener() {
            public void childrenAdded(BeanContextMembershipEvent bcme) {
                System.out.println("Another bean has been added to the context.");
            }

            public void childrenRemoved(BeanContextMembershipEvent bcme) {
                System.out.println("A bean has been removed from the context.");
            }
        });
        BeanContextChildSupport bean = new BeanContextChildSupport();
        context.add(bean);
        context.remove(bean);
    }
}

Output:

Another bean has been added to the context.
A bean has been removed from the context.
