Using Top-Level Containers

As we mentioned before, Swing provides three generally useful top-level container classes: JFrame, JDialog, and JApplet. When using these classes, you should keep these facts in mind:

• To appear onscreen, every GUI component must be part of a containment hierarchy. A containment hierarchy is a tree of components that has a top-level container as its root. We'll show you one in a bit.

• Each GUI component can be contained only once. If a component is already in a container and you try to add it to another container, the component will be removed from the first container and then added to the second.

• Each top-level container has a content pane that, generally speaking, contains (directly or indirectly) the visible components in that top-level container's GUI.

• You can optionally add a menu bar to a top-level container. The menu bar is by convention positioned within the top-level container, but outside the content pane. Some look and feels, such as the Mac OS look and feel, give you the option of placing the menu bar in another place more appropriate for the look and feel, such as at the top of the screen.

---

Note:  Although JInternalFrame mimics JFrame, internal frames aren't actually top-level containers.

---

Here's a picture of a frame created by an application. The frame contains a cyan menu bar (with no menus) and, in the frame's content pane, a large blank, yellow label.

You can find the entire source for this example in TopLevelDemo.java. Although the example uses a JFrame in a standalone application, the same concepts apply to JApplets and JDialogs.

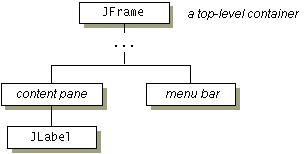

Here's the containment hierarchy for this example's GUI:

As the ellipses imply, we left some details out of this diagram. We reveal the missing details a bit later. Here are the topics this section discusses:

• Top-Level Containers and Containment Hierarchies
• Adding Components to the Content Pane
• Adding a Menu Bar
• The Root Pane (a.k.a. The Missing Details)

Each program that uses Swing components has at least one top-level container. This top-level container is the root of a containment hierarchy — the hierarchy that contains all of the Swing components that appear inside the top-level container.

As a rule, a standalone application with a Swing-based GUI has at least one containment hierarchy with a JFrame as its root. For example, if an application has one main window and two dialogs, then the application has three containment hierarchies, and thus three top-level containers. One containment hierarchy has a JFrame as its root, and each of the other two has a JDialog object as its root.

A Swing-based applet has at least one containment hierarchy, exactly one of which is rooted by a JApplet object. For example, an applet that brings up a dialog has two containment hierarchies. The components in the browser window are in a containment hierarchy rooted by a JApplet object. The dialog has a containment hierarchy rooted by a JDialog object.

Here's the code that the preceding example uses to get a frame's content pane and add the yellow label to it:

frame.getContentPane().add(yellowLabel, BorderLayout.CENTER);

As the code shows, you find the content pane of a top-level container by calling the getContentPane method. The default content pane is a simple intermediate container that inherits from JComponent, and that uses a BorderLayout as its layout manager.

It's easy to customize the content pane — setting the layout manager or adding a border, for example. However, there is one tiny gotcha. The getContentPane method returns a Container object, not a JComponent object. This means that if you want to take advantage of the content pane's JComponent features, you need to either typecast the return value or create your own component to be the content pane. Our examples generally take the second approach, since it's a little cleaner. Another approach we sometimes take is to simply add a customized component to the content pane, covering the content pane completely.

If you create your own content pane, make sure it's opaque. An opaque JPanel object makes a good content pane. Note that the default layout manager for JPanel is FlowLayout; you'll probably want to change it.

To make a component the content pane, use the top-level container's setContentPane method. For example:

//Create a panel and add components to it.
JPanel contentPane = new JPanel(new BorderLayout());
contentPane.setBorder(someBorder);
contentPane.add(someComponent, BorderLayout.CENTER);
contentPane.add(anotherComponent, BorderLayout.PAGE_END);

//Make it the content pane.
contentPane.setOpaque(true);
topLevelContainer.setContentPane(contentPane);

---

Note:  Don't use non-opaque containers such as JScrollPane, JSplitPane, and JTabbedPane as content panes. A non-opaque content pane results in messy repaints. Although you can make any Swing component opaque by invoking setOpaque(true) on it, some components don't look right when they're completely opaque. For example, tabbed panes generally let part of the underlying container show through, so that the tabs look non-rectangular. An opaque tabbed pane just tends to look bad.

In most look and feels, JPanels are opaque by default. However, JPanels in the GTK+ look and feel, which was introduced in 1.4.2, are not initially opaque. To be safe, we invoke setOpaque on all JPanels used as content panes.

---

All top-level containers can, in theory, have a menu bar. In practice, however, menu bars usually appear only in frames and perhaps in applets. To add a menu bar to a top-level container, you create a JMenuBar object, populate it with menus, and then call setJMenuBar. The TopLevelDemo adds a menu bar to its frame with this code:

frame.setJMenuBar(cyanMenuBar);

For more information about implementing menus and menu bars, see How to Use Menus.

Each top-level container relies on a reclusive intermediate container called the root pane. The root pane manages the content pane and the menu bar, along with a couple of other containers. You generally don't need to know about root panes to use Swing components. However, if you ever need to intercept mouse clicks or paint over multiple components, you should get acquainted with root panes.

Here's a glimpse at the components that a root pane provides to a frame (and to every other top-level container):

We've already told you about the content pane and the optional menu bar. The two other components that a root pane adds are a layered pane and a glass pane. The layered pane directly contains the menu bar and content pane, and enables Z-ordering of other components you might add. The glass pane is often used to intercept input events occuring over the top-level container, and can also be used to paint over multiple components.

For more information about the intricacies of root panes, see How to Use Root Panes.
