How to Write a Mouse-Motion Listener

Mouse-motion events tell you when the user uses the mouse (or a similar input device) to move the onscreen cursor. For information on listening for other kinds of mouse events, such as clicks, see How to Write a Mouse Listener. For information on listening for mouse-wheel events, see How to Write a Mouse Wheel Listener. If your program needs to detect both mouse events and mouse-motion events, you can use Swing's convenient MouseInputAdapter class, which implements both MouseListener and MouseMotionListener.

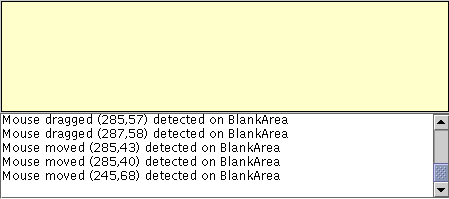

The following demo contains a mouse-motion listener. It's exactly like the example in How to Write a Mouse Listener, except for substituting MouseMotionListener for MouseListener, implementing the mouseDragged and mouseMoved methods instead of the mouse listener methods, and displaying coordinates instead of numbers of clicks.

[PENDING: Updated screenshot with sample output forthcoming.]

---

Try this:

1. Run MouseMotionEventDemo using Java^TM Web Start. Or, to compile and run the example yourself, consult the example index.
2. Move the cursor into the yellow rectangle at the top of the window.
   You'll see one or more mouse-moved events.
3. Press and hold the mouse button, and then move the mouse so that the cursor is outside the yellow rectangle.
   You'll see mouse-dragged events.

---

Here is the code from MouseMotionEventDemo.java that implements the mouse-motion event handling:

public class MouseMotionEventDemo extends JPanel
                                  implements MouseMotionListener {
    //...in initialization code:
        //Register for mouse events on blankArea and panel.
        blankArea.addMouseMotionListener(this);
        addMouseMotionListener(this);
        ...
    }

    public void mouseMoved(MouseEvent e) {
       saySomething("Mouse moved", e);
    }

    public void mouseDragged(MouseEvent e) {
       saySomething("Mouse dragged", e);
    }

    void saySomething(String eventDescription, MouseEvent e) {
        textArea.append(eventDescription
                        + " (" + e.getX() + "," + e.getY() + ")"
                        + " detected on "
                        + e.getComponent().getClass().getName()
                        + newline);
    }
}

A more interesting example is SelectionDemo, which is discussed in Introduction to Painting Concepts. The program draws a rectangle illustrating the user's current dragging. To do this, it must implement an event handler for three kinds of mouse events: mouse presses, mouse drags, and mouse releases. To be informed of all these events, the handler must implement both the MouseListener and MouseMotionListener interfaces, and be registered as both a mouse listener and a mouse-motion listener. To avoid having to define empty methods, the handler doesn't implement either listener interface directly. Instead, it extends MouseInputAdapter, as the following code snippet shows.

[PENDING: When this example has been updated, check the code.]

...//where initialization occurs:
    MyListener myListener = new MyListener();
    addMouseListener(myListener);
    addMouseMotionListener(myListener);
...
class MyListener extends MouseInputAdapter {
    public void mousePressed(MouseEvent e) {
        int x = e.getX();
        int y = e.getY();
        currentRect = new Rectangle(x, y, 0, 0);
        updateDrawableRect(getWidth(), getHeight());
        repaint();
    }

    public void mouseDragged(MouseEvent e) {
        updateSize(e);
    }

    public void mouseReleased(MouseEvent e) {
        updateSize(e);
    }

    void updateSize(MouseEvent e) {
        int x = e.getX();
        int y = e.getY();
        ...
        repaint(...);
    }
}

The Mouse-Motion Listener API

The MouseMotionListener Interface

The corresponding adapter class is MouseMotionAdapter.

Method	Purpose
mouseDragged(MouseEvent)	Called in response to the user moving the mouse while holding a mouse button down. This event is fired by the component that fired the most recent mouse-pressed event, even if the cursor is no longer over that component.
mouseMoved(MouseEvent)	Called in response to the user moving the mouse with no mouse buttons pressed. This event is fired by the component that's currently under the cursor.

Each mouse-motion event method has a single parameter — and it's not called MouseMotionEvent! Instead, each mouse-motion event method uses a MouseEvent argument. See The MouseEvent API for information about using MouseEvent objects.

The following table lists the examples that use mouse-motion listeners.

Example	Where Described	Notes
MouseMotionEventDemo	This section	Reports all mouse motion events that occur within a blank panel to demonstrate the circumstances under which mouse motion events are fired.
LayeredPaneDemo and LayeredPaneDemo2	How to Use Layered Panes	Moves an image of Duke around within a layered pane in response to mouse motion events.
SelectionDemo	Introduction to Painting Concepts	Lets the user drag a rectangle to select a portion of an image. Uses a subclass of MouseInputAdapter to listen to both mouse events and mouse-motion events.
GlassPaneDemo	How to Use Root Panes	Uses a subclass of MouseInputAdapter to listen to mouse events and mouse-motion events on the root pane's glass pane. Redispatches the events to underlying components.
ScrollDemo	How to Use Scroll Panes	The label subclass, ScrollablePicture, uses a mouse-motion listener to allow the user to scroll the picture even when the user drags outside the window.
