Trail: Creating a GUI with JFC/Swing
Lesson: Using Other Swing Features

How to Use Actions

If you have two or more components that perform the same function, consider using an Action (in the API reference documentation) object to implement the function. An Action object is an action listener (in the Creating a GUI with JFC/Swing trail) that provides not only action-event handling, but also centralized handling of the state of action-event-firing components such as tool bar buttons (in the Creating a GUI with JFC/Swing trail), menu items (in the Creating a GUI with JFC/Swing trail), common buttons (in the Creating a GUI with JFC/Swing trail), and text fields (in the Creating a GUI with JFC/Swing trail). The state that an action can handle includes text, icon, mnemonic, and enabled status.

You typically attach an action to a component using the setAction method. Here's what happens when setAction is invoked on a component:

Here's an example of creating a tool-bar button and menu item that perform the same function:
Action leftAction = new LeftAction(); //LeftAction code is shown later
...
button = new JButton(leftAction)
...
menuItem = new JMenuItem(leftAction);


Version Note: Prior to 1.3, the only way for a button or menu item to get the full benefit of using an Action was to create the component using the add(Action) method of JToolBar, JMenu, or JPopupMenu. This was because the pre-1.3 releases have no API except addActionListener(ActionListener) to connect an Action to an already existing component. Although you could use addActionListener to add an Action object as an action listener to any button, for example, the button wouldn't be notified when the action was disabled.

To create an Action object, you generally create a subclass of AbstractAction (in the API reference documentation) and then instantiate it. In your subclass, you must implement the actionPerformed method to react appropriately when the action event occurs. Here's an example of creating and instantiating an AbstractAction subclass:

leftAction = new LeftAction("Go left", anIcon,
             "This is the left button.",
             new Integer(KeyEvent.VK_L));
...
class LeftAction extends AbstractAction {
    public LeftAction(String text, ImageIcon icon,
                      String desc, Integer mnemonic) {
        super(text, icon);
        putValue(SHORT_DESCRIPTION, desc);
        putValue(MNEMONIC_KEY, mnemonic);
    }
    public void actionPerformed(ActionEvent e) {
        displayResult("Action for first button/menu item", e);
    }
}

When the action created by the preceding code is attached to a button and a menu item, the button and menu item display the text and icon associated with the action. The L character is used for mnemonics on the button and menu item, and their tool-tip text is set to the SHORT_DESCRIPTION string followed by a representation of the mnemonic key.

For example, we have provided a simple example, ActionDemo.java (in a .java source file), which defines three actions. Each action is attached to a button and a menu item. Thanks to the mnemonic values set for each button's action, the key sequence Alt-L activates the left button, Alt-M the middle button, and Alt-R the right button. The tool tip for the left button displays This is the left button. Alt-L. All of this configuration occurs automatically, without the program making explicit calls to set the mnemonic or tool-tip text. As we'll show later, the program does make calls to set the button text, but only to avoid using the values already set by the actions.

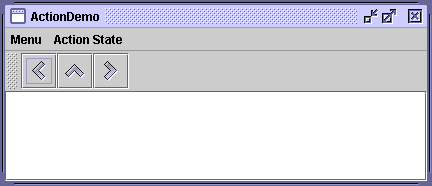

A snapshot of ActionDemo, which uses actions to coordinate menus and buttons.


Try this:
  1. Run ActionDemo using JavaTM Web Start (in the Creating a GUI with JFC/Swing trail). Or, to compile and run the example yourself, consult the example index.
  2. Choose the top item from the left menu (Menu > Go left).
    The text area displays some text identifying both the event source and the action listener that received the event.
  3. Click the leftmost button in the tool bar.
    The text area again displays information about the event. Note that although the source of the events is different, both events were detected by the same action listener: the Action object attached to the components.
  4. Choose the top item from the Action State menu.
    This disables the "Go left" Action object, which in turn disables its associated menu item and button.

Here is what the user sees when the "Go left" action is disabled:

A snapshot of ActionDemo when

A snapshot of ActionDemo when

Here's the code that disables the "Go left" action:

boolean selected = ...//true if the action should be enabled;
                      //false, otherwise
leftAction.setEnabled(selected);
After you create components using an Action, you might well need to customize them. For example, you might want to customize the appearance of one of the components by adding or deleting the icon or text. For example, ActionDemo.java (in a .java source file) has no icons in its menus, and no text in its buttons. Here's the code that accomplishes this:
menuItem = new JMenuItem();
menuItem.setAction(leftAction);
menuItem.setIcon(null); //arbitrarily chose not to use icon in menu
...
button = new JButton();
button.setAction(leftAction);
button.setText(""); //an icon-only button

We chose to create an icon-only button and a text-only menu item from the same action by setting the icon property to null and the text to an empty string. However, if a property of the Action changes, the widget may try to reset the icon and text from the Action again.

The Action API

The following tables list the commonly used Action constructors and methods. The API for using Action objects falls into three categories:

Components that Support set/getAction
Class Purpose
AbstractButton
JComboBox
JTextField
As of release 1.3, these components and their subclasses may have an action directly assigned to them via setAction. For further information about components that are often associated with actions, see the sections on tool bar buttons (in the Creating a GUI with JFC/Swing trail), menu items (in the Creating a GUI with JFC/Swing trail), common buttons (in the Creating a GUI with JFC/Swing trail), and text fields (in the Creating a GUI with JFC/Swing trail). For details on which properties each component takes from the Action, see the API documentation for the relevant class's configurePropertiesFromAction (in the API reference documentation) method.

Creating and Using an AbstractAction
Constructor or Method Purpose
AbstractAction()
AbstractAction(String)
AbstractAction(String, Icon)
Create an Action object. Through arguments, you can specify the text and icon to be used in the components that the action controls.
void setEnabled(boolean)
boolean isEnabled()
Set or get whether the components the action controls are enabled. Invoking setEnabled(false) disables all the components that the action controls. Similarly, invoking setEnabled(true) enables the action's components.
void putValue(String, Object)
Object getValue(String)
Set or get an object associated with a specified key. Used for setting and getting properties associated with an action.

Action Properties

This table defines the properties that can be set on an action. The second column lists which components automatically use the properties (and what method is specifically called). For example, setting the ACCELERATOR_KEY on an action that is then attached to a menu item, means that JMenuItem.setAccelerator(KeyStroke) is called automatically.

Property Auto-Applied to:
Class
(Method Called)
Purpose
ACCELERATOR_KEY JMenuItem
(setAccelerator)
The KeyStroke to be used as the accelerator for the action. For a discussion of accelerators versus mnemonics, see Enabling Keyboard Operation. (in the Creating a GUI with JFC/Swing trail) Introduced in 1.3.
ACTION_COMMAND_KEY AbstractButton, JCheckBox, JRadioButton
(setActionCommand)
The command string associated with the ActionEvent.
LONG_DESCRIPTION None The longer description for the action. Can be used for context-sensitive help.
MNEMONIC_KEY AbstractButton, JMenuItem, JCheckBox, JRadioButton
(setMnemonic)
The mnemonic for the action. For a discussion of accelerators versus mnemonics, see Enabling Keyboard Operation. (in the Creating a GUI with JFC/Swing trail) Introduced in 1.3.
NAME AbstractButton, JMenuItem, JCheckBox, JRadioButton
(setText)
The name of the action. You can set this property when creating the action using the AbstractAction(String) or AbstractAction(String, Icon) constructors.
SHORT_DESCRIPTION AbstractButton, JCheckBox, JRadioButton
(setToolTipText)
The short description of the action.
SMALL_ICON AbstractButton, JMenuItem
(setIcon)
The icon for the action used in the tool bar or on a button. You can set this property when creating the action using the AbstractAction(name, icon) constructor.

Examples that Use Actions

The following examples use Action objects.

Example Where Described Notes
ActionDemo This section Uses actions to bind buttons and menu items to the same function.
TextComponentDemo Text Component Features (in the Creating a GUI with JFC/Swing trail) Uses text actions to create menu items for text editing commands, such as cut, copy, and paste, and to bind key strokes to caret movement. Also implements custom AbstractAction subclasses to implement undo and redo. The text action discussion begins in Concepts: About Editor Kits.
