1. Introduction

Image Compression GUI is a Graphical User Interface developed for Image Compression applications in MatLab^TM computing environment which is an easy to use interface. User can successfully use several cutting edge Image Compression Technologies through the GUI and learn techniques included in the GUI. The GUI include several Image Compression Techniques developed using the key concepts of the areas like Artificial Neural Networks, Fuzzy Logic, Wavelet Transform. The layout of the GUI is designed for users who unaware of technical details of the areas and this features makes the GUI more interactive Front End tool.

1.1 Unique Features

We believe in providing the solutions through continuous research and technology enhancements. The Image compression GUI brings together the latest in Image Compression Technologies by utilizing potential research concepts of soft-computing based techniques. The algorithms are results of thorough testing and validation and provide wide range of compression level. Each technique has advantages over respective areas of application which makes them suitable for wide range of adaptability and some techniques gives the comparable results with the image compression JPEG standards as for as compression level is concerned. The uniqueness of this GUI also lies in combining the several research areas with convention transform based data compression techniques thus implementing hybrid image compression techniques. The GUI system design, architecture, user-interface, flexibility and algorithmic capabilities also gives it the capability to use as stand alone application as well as it can be integrated with other image compression module.

1.2 User Friendly Interface

The GUI’s based user-friendly technologies are easy to learn. The use of the complex algorithms like Neural Networks and Fuzzy logic based algorithm, which are defined by the network architecture (layers) and the training algorithm (learning rules), provide the user friendly interface. The GUI provides the options for the user to select a particular technique through an interactive pull down menu option. The comprehensive list of parameters along with their optional values is imbedded in GUI by easy to select sliding bar or through the text box. The parameters related to compressed data and reconstructed image quality data are also displayed in GUI. The details description of various features of GUI is provided in various sections through the interactive documentations.



2. Interactive Elements of GUI Front End

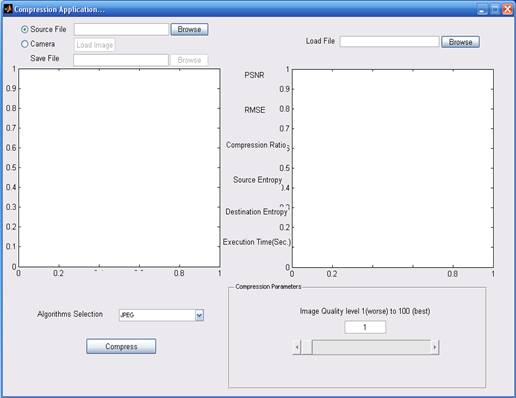

The interactive embedded elements of GUI Front End (in figure given below) are as follows,

Ø      Input image through

        Input image can be selected in two ways as shown in figure below:

• Source File from Hard Disc

• Through Camera by selecting the Camera radio option as shown in figure



















 Figure: Selection of the Input Image

Ø      Algorithms Selection

        Coder Algorithm selection can be selected through the combo

         box as shown in figure below,















Ø                  Algorithmic parameter selection can be done by entering the value in textbox provided for Image Quality level as shown in figure below. The typical values of parameter for different algorithm is given in table shown below,



















Ø      To begin compression procedure by pressing the Compress button. The compression progress will be as shown in figure below,



















Ø            Save compressed output file of coder through Save File option as  shown in figure below,

















 Ø            Load compressed or decode compressed data file through Load File option as shown in figure below.

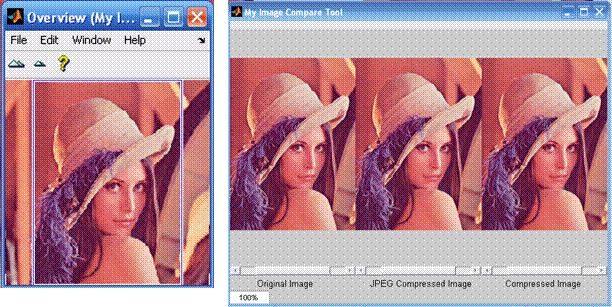

 Ø            Compare the algorithm performance with JPEG through “comparison with JPEG”, and the output is as shown in figure below,

















Results displayed in GUI



PSNR (Peak Signal-to-Noise Ratio)

PSNR is defined as the ratio of an original image and a coded/decoded image, PSNR is usually expressed in terms of the logarithmic decibel (dB) scale. Typical quoted PSNR figures are in the range +25 to +35dB.

RMSE (Root Mean Squared Error)

A measure of total error defined as the square root of the sum of the variance and the square of the bias.

Compression Ratio

Compression ratio is defined as the ratio of an original image and compressed image.

Compression Ratio = Original Image Size / Compressed Image Size

Entropy

The entropy measure conveys the information contained in the image and any compression scheme should retain the entropy measure while reducing the redundant information from the image.

Source Entropy - The entropy of original image.

Destination Entropy -  The entropy of reconstructed  image.

Execution Time In which a single instruction is executed. It makes up the last half of the instruction cycle.



3. System Requirements

• Microsoft Windows XP Professional or Home Edition (Service Pack 1 or 2)
• Windows 2000 (Service Pack 2)
• Windows XP Tablet PC Edition,
• Windows Server 2003
• Windows NT (Service Pack 6 or 6a)
• 128MB of RAM (256MB recommended)
• Up to 35MB of available hard-disk space



4. Description of Algorithms

4.1 JPEG (Joint Photographic Experts Group)

In computing, JPEG (pronounced JAY-peg) is a commonly used method of compression for photographic images. The name JPEG stands for Joint Photographic Experts Group, the name of the committee that created the standard. The group was organized in 1986, issuing a standard in 1992, which was approved in 1994 as ISO 10918-1. It is designed for compressing full-color or gray-scale images of natural, real-world scenes. It works well on photographs, naturalistic artwork, and similar material.

The JPEG standard specifies both the codec, which defines how an image is compressed into a stream of bytes and decompressed back into an image, and the file format used to contain that stream. The compression method is usually lossy compression, meaning that some visual quality is lost in the process and cannot be restored, although there are variations on the standard baseline JPEG that are lossless.

The good introduction and links can be found out at web link: http://en.wikipedia.org/wiki/JPEG

Compression Parameters for JPEG in GUI

In JPEG algorithm the compression level can be directly varied in terms of reconstructed image quality on a scale of 1 to 100 i.e., 1 for worst case reconstructed image quality and 100 for best case reconstructed image quality.

4.2 Multilayer Artificial Neural Network based Back Propagation Algorithm

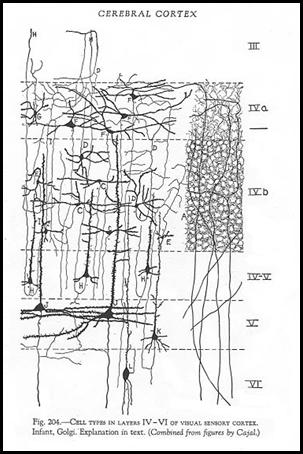

The Artificial Neural Network is a stream which tries to mimic the human brain behaviors and functionality as shown in figure below.

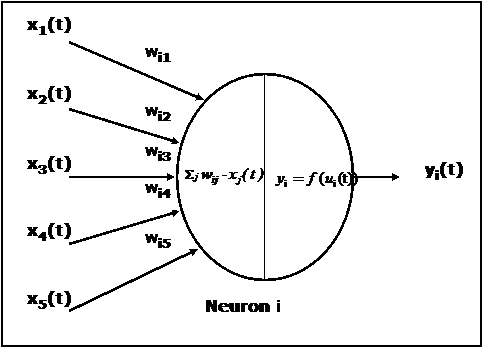

The artificial neuron model is given in figure as given below,


























The conventional Back Propagation Algorithm is basically a gradient-descent method; it has the problems of local minima and slow convergence. The aim of network is to train the input vector in such a way that after training we are able to get image matrix in output layer with least error. The compression is achieved by using less number of hidden neurons in hidden layer than input. In above figure as we have used l input and k hidden neuron and if number of pattern is P then:

               Compression ratio =

The use of neural network in image compression is given in figure as given below,







Compression Parameters for BPA in GUI

In BPA algorithm, Compression Parameters are given below.

Enter the number of iteration       100 – 200

Enter the number of block size        4, 8

Enter the number of Hidden Layers     4, 8, 16



4.3 BTC (Block Truncation Coding)

Block Truncation Coding (BTC) is a lossy image compression technique. BTC is a simple and fast algorithm which achieves constant bit rate of 2.0 bits per pixel. The method is however suboptimal. It divides the original images into small sub-images and then using a quantizer, which adapts itself according to the image statistics, to reduce the number of gray levels in the image.

Steps for Block Truncation Coding

• An image is divided into non-overlapping blocks. The size of a block could be (4x4) or (8x8) etc. Calculate the average gray level of the block 4x4)as,

      where represents pixels in block

• Pixels in the image block are then classified into two kinds according to whether their gray level is greater than the block average gray level. The average gray levels of these two kinds of pixel are calculated as,

      and  where K is

     the number of pixels whose gray level is greater

     than m.

• A binary block, denoted b, is also needed to classify the pixels. We can use “1” to represent a pixel whose gray level is grater than m and “0” to represent a pixel whose gray level is less than or equal to m.
• The encoder writes mu, ml and b to a file. Assume that we use 8 bits to represent mu and ml, respectively. Then the total number of bits required for a block is 8+8+16 =32 bits. Thus, the bit rate for the very basic BTC algorithm is 2 bits/pixel.
• In the decoder, an image block is reconstructed by replacing the “1”s with mu and the “0”s by ml.

4.4 Counterpropagation Network (CPN)

Counterpropagation network can be viewed as a self-programming lookup table as it essentially finds the closest fit of a particular input to an entry in its training set. A crucial feature for this application is the ability to accept input with noise and provide a solution and probability value for that solution. A special feature of the Counter Propagation Network exists if the function can be linearized. This CPN network adaptation is referred to as Interpolative Associative Memory and has the substantial benefit that it does not require training in the traditional sense.

        Conventional CPN architecture is a combination of a portion of a self–organizing map of Kohonen and the outstar structure of Grossberg. Kohonen network clusters training vectors by the adaptive vector quantization and approximates the centroid of each vector class in a self-organizing fashion and Grossberg’s outstar network adapts the associated vectors through a supervised training method. The CPN architecture is given in figure below as,

Purpose: fast and coarse approximation of vector mapping

·         not to map any given x to its with given precision,

·         input vectors x are divided into clusters/classes.

·         each cluster of x has one output y, which is the average of  for all x in that class.

Learning in two phases:

Training sample (x, d) where is the desired precise mapping

Phase 1(Kohonen layer): weights  coming into hidden nodes  are trained by competitive learning to become the representative vector of a cluster of input vectors x (use only x, the input part of (x, d)).

1.    For a chosen x, feedforward to determined the winning

2.

3.    Reduce , then repeat steps 1 and 2 until stop condition is met

Phase 2(Grossberg Layer): weights going out of hidden nodes are trained by delta rule   to be an average output of  where x is an input vector that causes  to  win (use both x and  d).

1.    for a chosen x, feedforward to determined the winning

2.     (optional)

3.

4.    Repeat steps 1 – 3 until stop condition is met

After phase 1, clusters are formed among sample input x, each is a representative of a cluster (average). After phase 2, each cluster k maps to an output vector y.



After training, the network works like a look-up of math table.

•         For any input x, find a region where x falls (represented by the wining z node);

•         Use the region as the index to look-up the table for the function value.

•         CPN works in multi-dimensional input space

•         More cluster nodes (z), more accurate mapping.

•         Training is much faster than BP

4.5 Gaussian Pyramid

To represent the image directly in terms of the pixel values is therefore inefficient: most of the encoded information is redundant. To design an efficient compression code, the first task is to find a representation which, in effect, decorrelate the image pixels. An image pyramid is the representation of an image at different resolutions. The idea behind image pyramids is to generate a number of homogeneous parameters that represent the response of a bank of filters at different scales and possibly different orientations. To achieve this, the first step is to apply a low-pass filter on  the original image g0 to obtain image g1. We say that g1 is a "reduced" version of g0 in that both resolution and sample density are decreased. In a similar way we form g2 as a reduced version of g1, and so on. Filtering is performed by a procedure equivalent to convolution with one of a family of local, symmetric weighting functions. An important member of this family resembles the Gaussian probability distribution, so the sequence of images g0, g1,…, gn is called the Gaussian pyramid.

 Gaussian Pyramid Generation

Suppose the image is represented initially by the array g0 which contains C columns and R rows of pixels. Each pixel represents the light intensity at the corresponding image point by an integer I between 0 and (K — 1). This image becomes the bottom or zero level of the Gaussian pyramid. Pyramid level 1 contains image g1, which is a reduced or low-pass filtered version of g0. Each value within level 1 is computed as a weighted average of values in level 0 within a window (e.g.,5-by-5). Each value within level 2, representing g2, is then obtained from values within level 1 by applying the same pattern of weights.







The level-to-level averaging process is performed by the function REDUCE.

gk = REDUCE (gk — 1) which means, for levels 0 < l < N and nodes i, j, , 0 < i < Cl,

0 < j < Rl,

.

         Here N refers to the number of levels in the pyramid, while Cl and Rl are the dimensions of the lth level. Note in Fig. that the density of nodes is reduced by half in one dimension or by a fourth in two dimensions from level to level.

The dimensions of the original image are appropriate for pyramid construction if integers ,  and N exist such that

The dimensions of  are  = MC 2N - l + 1 and Rl = MR 2N - l +1 .

Repeat

• Filter

• Subsample

Until minimum resolution reached or can specify desired number of levels (e.g., 3-level pyramid)

4.6 Gaussian Pyramid-CPN

The Gaussian pyramid-CPN is hybrid algorithm which uses the Gaussian pyramid domain coefficients as input for CPN network.

4.7 Wavelet

A wavelet is a kind of mathematical function used to divide a given function or continuous-time signal into different frequency components and study each component with a resolution that matches its scale. A wavelet transform is the representation of a function by wavelets. The wavelets are scaled and translated copies (known as "daughter wavelets") of a finite-length or fast-decaying oscillating waveform (known as the "mother wavelet"). Wavelet transforms have advantages over traditional Fourier transforms for representing functions that have discontinuities and sharp peaks, and for accurately deconstructing and reconstructing finite, non-periodic and/or non-stationary signals. Wavelet transforms are classified into discrete wavelet transforms (DWTs) and continuous wavelet transforms (CWTs). Note that both DWT and CWT are of continuous-time (analog) transforms. They can be used to represent continuous-time (analog) signals. CWTs operate over every possible scale and translation whereas DWTs use a specific subset of scale and translation values or representation grid.



Using a wavelet transform, the wavelet compression methods are adequate for representing transients, such as percussion sounds in audio, or high-frequency components in two-dimensional images, for example an image of stars on a night sky. This means that the transient elements of a data signal can be represented by a smaller amount of information than would be the case if some other transform, such as the more widespread discrete cosine transform, had been used.

A detailed account of wavelet transform can be found at http://users.rowan.edu/~polikar/WAVELETS/WTtutorial.html



4.8 Wavelet-BPA (Back Propagation Algorithm)

The Wavelet-BPA is hybrid algorithm which uses the wavelet coefficients as input for BPA network.

Compression Parameters for Wavelet-BPA in GUI

In BPA algorithm, Compression Parameters are given below.

Enter the number of iteration       100 – 200

Enter the number of block size        4, 8

Enter the number of Hidden Layers     4, 8, 16

4.9 BTC-Wavelet

The Wavelet-BTC is hybrid algorithm which uses the wavelet coefficients as input for BTC algorithm.

4.10 Wavelet-CPN (Counter Propagation Network)

The Wavelet-CPN is hybrid algorithm which uses the wavelet domain coefficients as input for CPN network.

4.11 Wavelet-SPIHT (Set Partitioning In Hierarchical Trees)

SPIHT is applied after the wavelet transform where SPIHT algorithm is used to encode the wavelet coefficients. The SPIHT algorithm has received widespread recognition for its notable success in image coding.

The SPIHT method is not a simple extension of traditional methods for image compression, and represents an important advance in the field. The method deserves special attention because it provides the following features as,

• Good image quality, high PSNR especially for color images

• It is optimized for progressive image   transmission

• Produces a fully embedded coded file

• Simple quantization algorithm

• Fast coding/decoding (nearly symmetric)

• Has wide applications, completely adaptive

• Can be used for lossless compression

• Can code to exact bit rate or distortion

• Efficient combination with error protection.

The principles of the SPIHT algorithm are partial ordering of the transform coefficients by magnitude with a set partitioning sorting algorithm, ordered bit plane transmission and exploitation of self-similarity across different layers. By following these principles, the encoder always transmits the most significant bit to the decoder. The important parts of algorithm are as,

Temporal Orientation Trees

A tree structure shown in figure below, called    ”temporal orientation tree”, defines the temporal relationship in the wavelet domain. Every point in layer i corresponds to 2 points in the next layer i+1, with the arrow indicating the parent-offspring relation. This definition is analogous to that of spatial orientation trees. Each node either has no offspring or 2 offspring. In a typical 1-D signal, most of the energy is concentrated in low frequency bands, so that the coefficients are expected to be better magnitude-ordered as we move downward following the temporal orientation tree to the leaves (terminal nodes).

                            Figure: The Temporal Orientation Tree

Set Partitioning Sorting Algorithm

The same set partitioning rule is defined for both the encoder and decoder. The subset of subband coefficients ci in the subset T is said to be significant for bit depth n if , otherwise it is said to be insignificant. If the subset is insignificant, a 0 is sent to the decoder.

If it is significant, a 1 is sent to the decoder and then the subset is further split according to the temporal orientation tree until all the significant sets are a single significant point. In this stage of coding, called the sorting pass, the indices of the coefficients are put onto three lists, the list of insignificant points (LIP), the list of insignificant sets (LIS), and the list of significant points (LSP). In this pass, only bits related to the LSP entries and binary outcomes of the magnitude tests are transmitted to the decoder. In implementation we grouped together the entries in the LIP and LIS which have the same parent into an entry atom. For each entry atom in LIP, we estimated a pattern in both encoder and decoder to describe the significance status of each entry in the current sorting pass. If the result of the significance test of the entry atom is the same as the specified pattern, we can use one bit to represent the status of the whole entry atom which otherwise had two entries and representation of significance by two bits.

Refinement Passes

After each sorting pass, we get the significant coefficients for the threshold 2n, and then send to the decoder the nth most significant bit of every coefficient found significant at a higher threshold. By transmitting the bit stream in this ordered bit plane fashion, we always transmit the most valuable (significant) remaining bits to the decoder. The outline of the full coding algorithm can be found at,

     http://www.cipr.rpi.edu/~pearlman/papers/bme99_lp.pdf

   Compression Parameters for SPIHT in GUI

In Wavelet-SPIHT algorithm Bit rate level lies between 0.01 (high compression, less quality of reconstructed image) to 1 (low compression, high quality of reconstructed image). User can select the parameter according his requirement.

4.12 ICA (Independent Component Analysis)

ICA is a statistical and computational technique for revealing hidden factors that underlie sets of random variables, measurements, or signals. ICA defines a generative model for the observed multivariate data, which is typically given as a large database of samples. In the model, the data variables are assumed to be linear mixtures of some unknown latent variables, and the mixing system is also unknown. The latent variables are assumed non-Gaussian and mutually independent and they are called the independent components of the observed data. These independent components, also called sources or factors, can be found by ICA.

ICA is superficially related to principal component analysis and factor analysis. ICA is a much more powerful technique, however, capable of finding the underlying factors or sources when these classic methods fail completely.

The data analyzed by ICA could originate from many different kinds of application fields, including digital images, document databases, economic indicators and psychometric measurements.

Applications of ICA include Image compression, Image Denoising, feature extraction, face recognition, and image water marking.

 Method (For example)

For separation of two signals, ICA is modeled as x = A * S.

It is explained in the below shown diagram.



Application of ICA for Image Denoising

Compression Parameters for ICA in GUI

In ICA algorithm, Compression Parameter will be Number of independent component between 2 to 200.



4.13 PCA (Principal Components Analysis)

In statistics, Principal Components Analysis (Pearson, 1901) is a technique that can be used to simplify a dataset; more formally it is a linear transformation that chooses a new coordinate system for the data set such that the greatest variance by any projection of the data set comes to lie on the first axis (then called the first principal component), the second greatest variance on the second axis, and so on.

PCA can be used for reducing dimensionality in a dataset while retaining those characteristics of the dataset that contribute most to its variance by eliminating the later principal components (by a more or less heuristic decision). These characteristics may be the "most important", but this is not necessarily the case, depending on the application.

 PCA for Image Compression



Method followed (for example): The Image is Split into blocks of 8 x 8 pixels. PCA is applied on this distribution of 64-dimensionel vectors.

Then the image is reconstructed from 8 first PC compressions.
