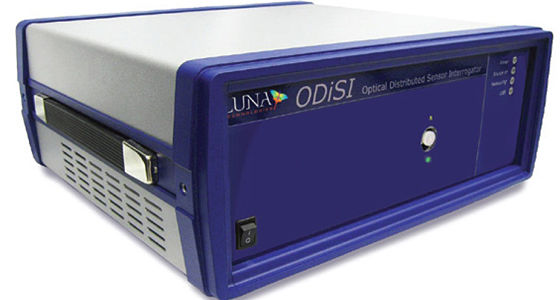

Optical Distributed Sensor Interrogator

Model A50 from Luna Technologies


The Luna ODiSI enables high resolution distributed temperature and strain measurements using simple, un-altered, telecom-grade optical fiber as the sensor. With 50 meters maximum sensing length and sub-centimeter spatial resolution, the ODiSI is the paramount tool for

  • Load/fatigue/structural/mechanical testing,

  • Model and simulation validation,

  • Structural health monitoring,

  • Stress profile in foundation and

  • Stress and temperature profile in pavement and foundations,

  • Composite testing.

Key features include

  • +/- 15,000 microstrain, up to 300O C

  • +/- 1 microstrain, +/- 0.1OC

  • Sub-cm spatial resolution

  • Sampling rate 1 Hz for 50m interrogator and 3 Hz for 10m interrogator

  • Easily deployable, inexpensive sensors

  • 1000s of sensing points in a single fiber

  • Disposable/easily replaceable

  • Reduced installation time and cost

  • User configurable gauge length and sensing locations

  • Point and/or distributed sensing anywhere in your device or structure under test

  • Temperature and/or strain in the same sensing fiber

  • Intuitive touch to define sensing points and regions

  • Standard GUI and user customizable software development kit

  • Simple monitoring and data logging

Location:


Structural Engineering Laboratory, Advance Monitoring and Sensing Room
S-Lab-STL 1, Department of Civil Engineering
IIT Kanpur

Contact:


Prof. Samit Ray Chaudhuri
This email address is being protected from spambots. You need JavaScript enabled to view it.

Mr. Kunwar K. Bajpai
This email address is being protected from spambots. You need JavaScript enabled to view it.

User Charges:


Cost of the fibre will be charged
