National Facility For Atom Probe Tomography

Location: ACMS 112

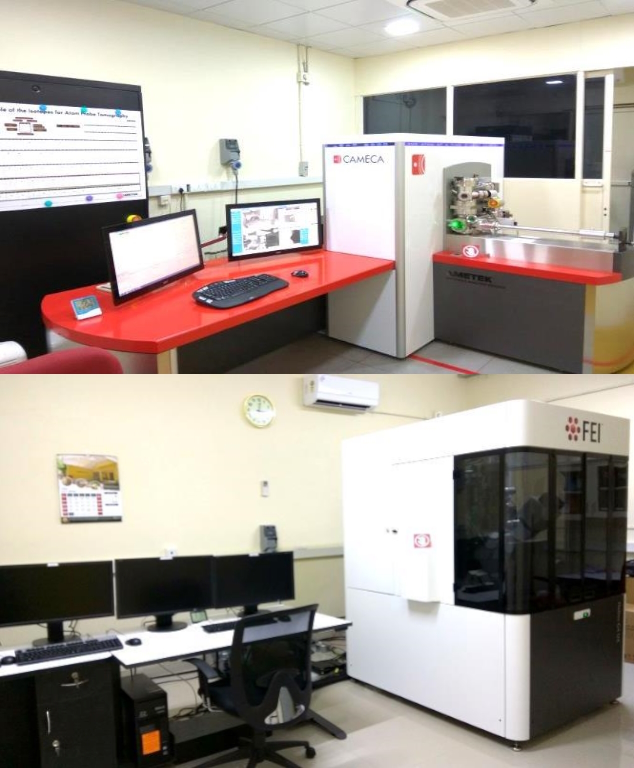

National Facility for Atom Probe Tomography (NFAPT) houses the state of art atom probe tomography (APT), latest cutting edge technology "Local Electrode Atom Probe (LEAP 5000 XR)" along with "Helios Dual Beam Scanning Electron Microscope with Focussed Ion Beam (FIB)" for LEAP sample preparation. The group of eight founding partner institutions (IIT Madras, IIT Bombay, IIT Delhi, IIT Kanpur, IIT Kharagpur, IIT Ropar, ARCI Hyderabad/Chennai and BRNS) have the remotely operable module empowering independent online operational capability of LEAP. This is the first remotely operable LEAP facility in the world. Any researcher in India is welcome to use the facility by contacting the coordinator.

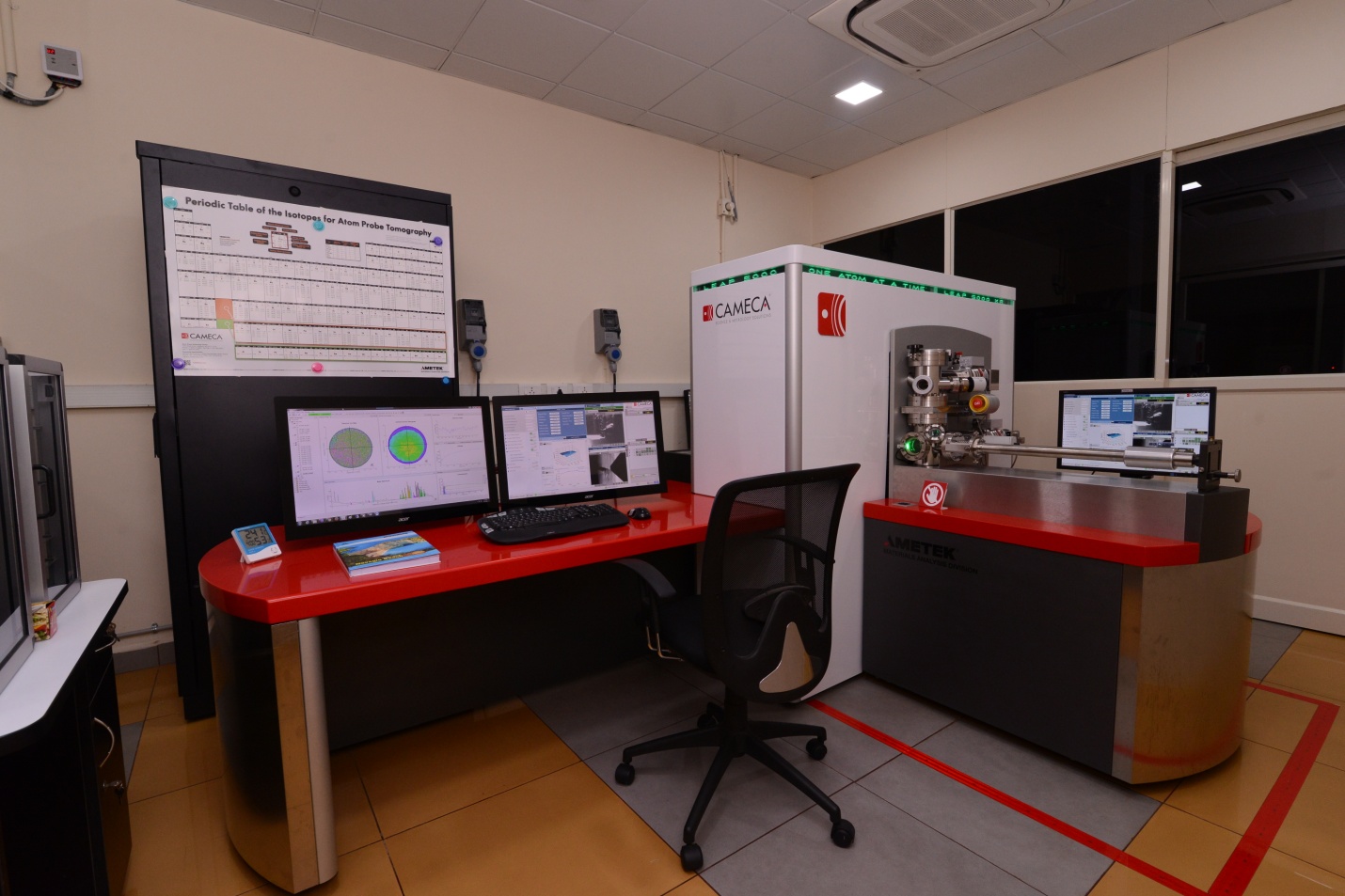

Instrument:LEAP 5000 XR
Model/Supplier: Cameca

Application

• Steels & ODS steels
• Clusters, precipitates & interfaces
• Non-ferrous alloys, Superalloys
• High entropy alloys & Glasses
• Ceramics & Polymers
• Thermoelectric materials
• Energy capture and storage materials
• Geochemistry
• Magnetic, Ferroelectric & ME Materials
• Biomaterials
• Semiconductors multilayers & devices
• Catalytic materials
• Sprintronic & Photovoltaic materials
• Nano wires and tubes, quantum dots

Specifications

• Reflectron ion optic design
• Clusters, precipitates & interfaces
• Field of view up to 200 nm
• Voltage and Laser modes
• Mass resolving power 1100
• Specimen temperature 25K to 80K
• 355 nm UV laser for laser mode
• Laser energy range from 0.001pJ to 1000pJ
• Less than 3 micro meter laser spot size
• Upto 500kHz pulse rate for laser

Application Software

• Acquisition Control Centre (ACC) - Version 5.1.1
• Data Acquisition & Visualization Software (DAVis) - Version 5.1
• Integrated Visualization and Analysis Software (IVAS) - Version 3.8.2

How to book slots

Please contact to the Coordinator for slot booking.
