Research Highlight

Research done on the project focuses on developing a robot capable of delivering an improved mechanical and sensor performance compared to conventional intelligent pigging robots. The main highlights of the research done so far are detailed below:

Sensors Output:

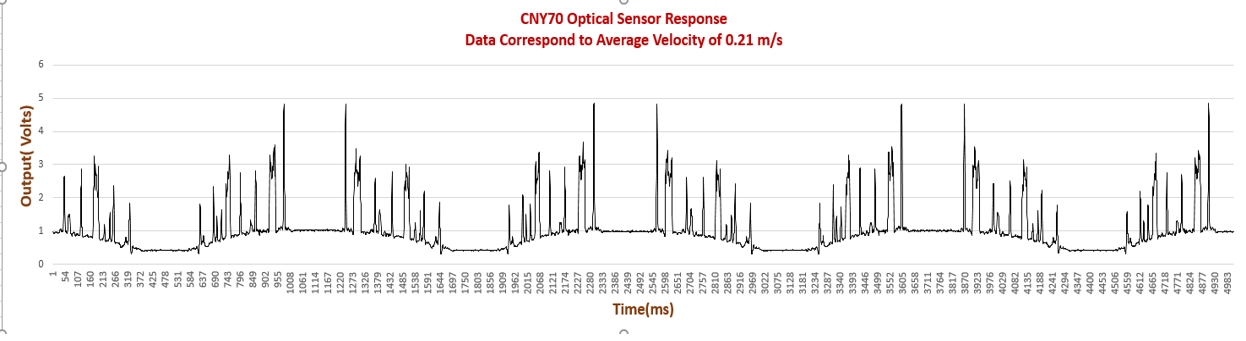

Optical Sensor

Package Type: Leaded
Detector Type:Phototransister
Peak Operating Dostance<0.5mm
Dimensions7x7x6
Collector Current0mm to 5mm
Emitter Wavelength950nm
Operating Range Within>20% relative
Output:

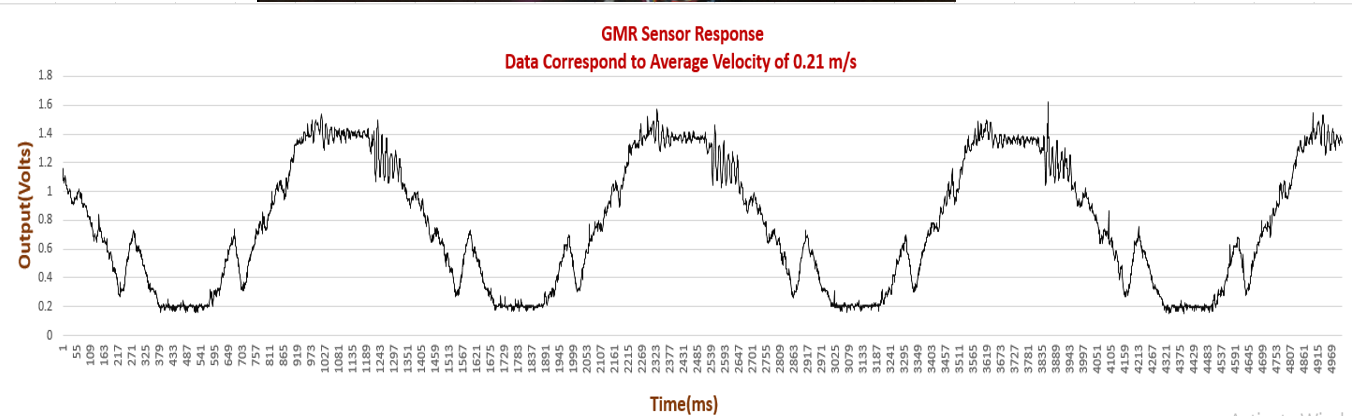

GMR Sensor

Wheel Assembly

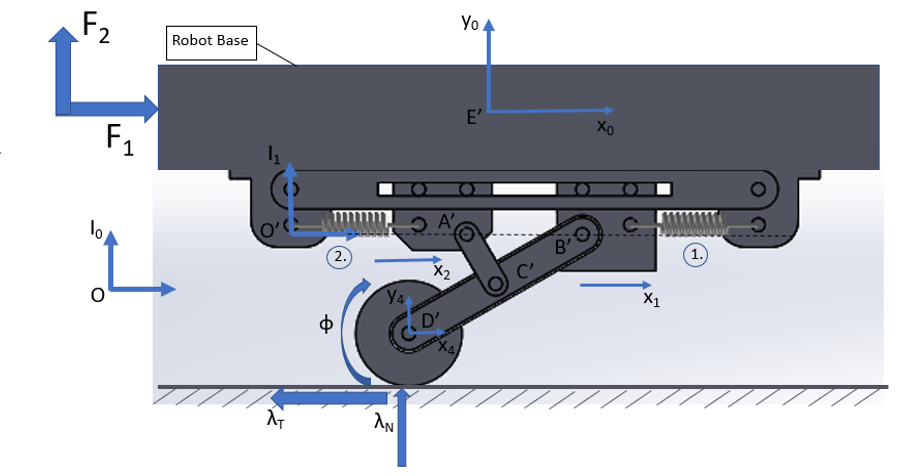

The following picture depicts the model of the wheel assembly which is inspired from the wheel system used in pipe inspection mini robot (IPMR-III):

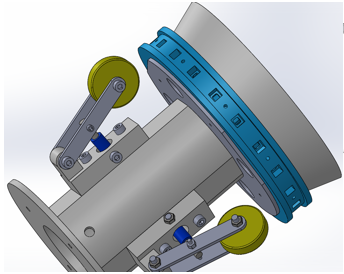

New Wheel Assembly

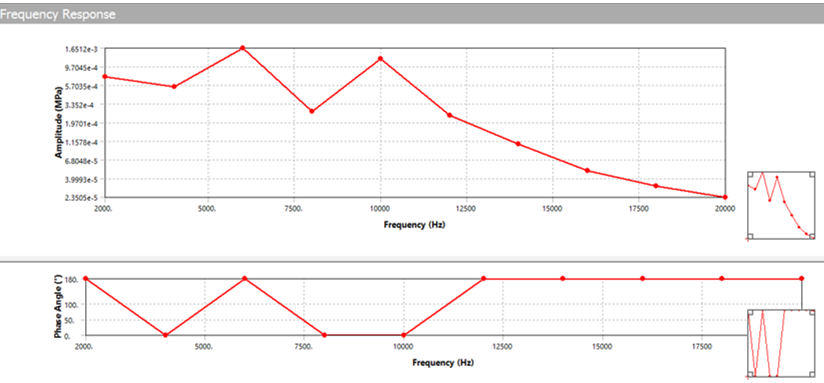

Harmonic Response of the module with the new wheel assembly

GUI Development

GUI provides two modes of operation :

  • Online Mode: The real time data of the robot is displayed in this mode using a communication model.

  • Offline Mode: The sensors data from the robot is stored in SD Card, this SD card data is virtualized in this Offline Mode and studied.

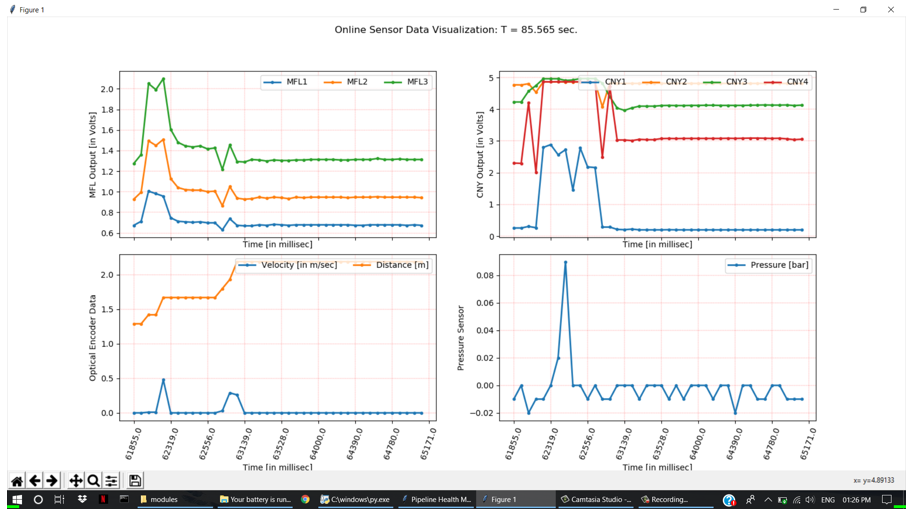

    • Online Mode:



    GUI Outputs:

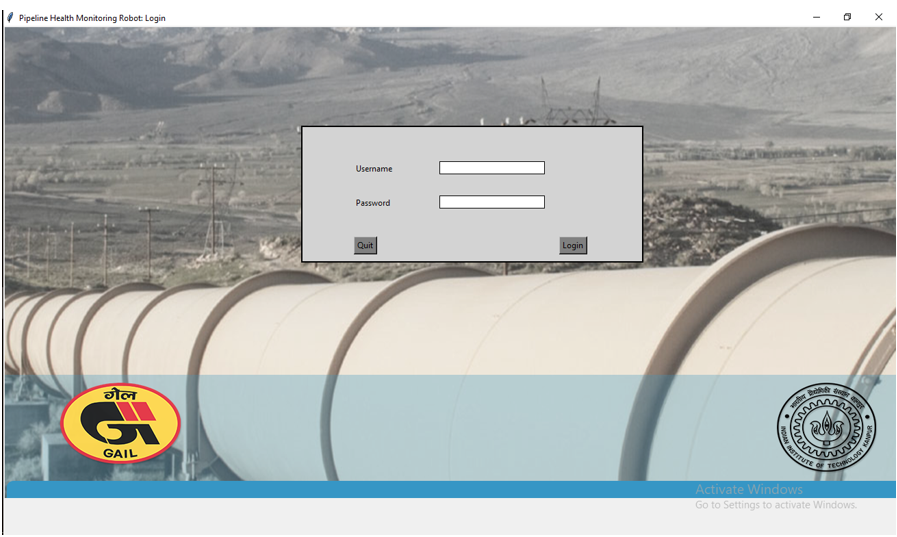

    Login Window of GUI:

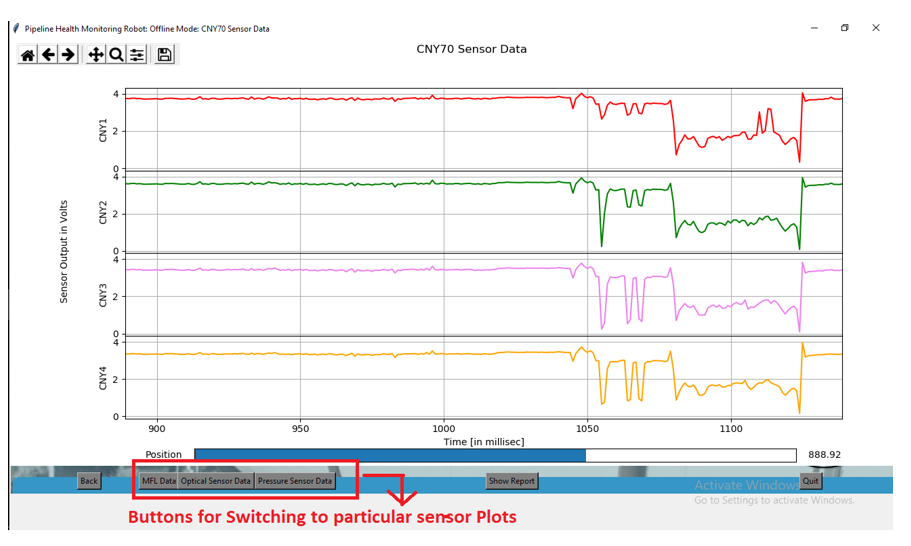

    Offline Mode:
    GUI Window for plotting data for MFL, CNY70, Optical Encoder, Pressure Sensor.




    PHMR

    Previous Designs

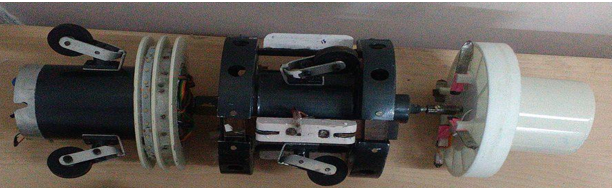

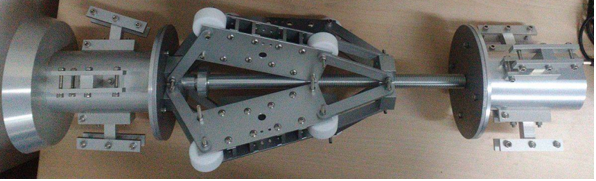

    PHMR-I
  • Initial Prototype
  • Turbine for power generation.
  • PVDF, Point MFL, Optical Sensors
    		•
    PHMR-II-a
  • Full Aluminium Body
  • PVDF, Distributed MFL Sensors
  • Constant Speed
  • Cannot negotiates pipe bends

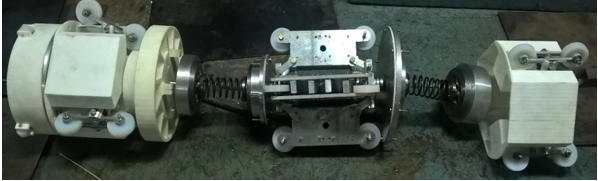

    • PHMR-II-b
  • Speed Control
  • PVDF, Distributed MFL Sensors, Optical Sensors
  • Cannot negotiates pipe bends

    •
