DROP WEIGHT IMPACTOR

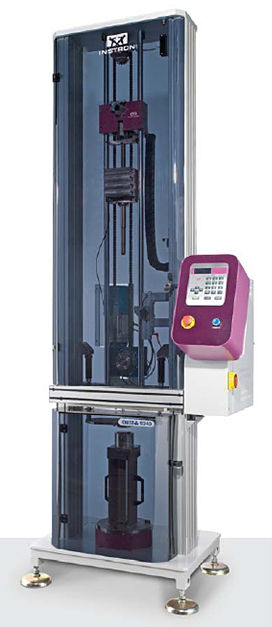

The Instron CEAST 9340 is a floor standing system designed to deliver 0.30 - 405 J (0.22 - 299 ft-lb) of energy. The standard model includes basic instrumentation and a conveniently mounted machine controller that enables the operator to run the tower and collect basic data. For more in-depth data, the CEAST impact software and data acquisition system can be added. The CEAST 9340 is suitable for a range of impact applications including tensile impact, penetration tests on plates and films, Izod, and Charpy tests.



Designed and built to meet the most common standards including:





ISO 3127

ISO 6603

ISO 7765

ISO 11343

ISO 8256

PR EN6038

DIN 53373

ASTM D2444

ASTM D3763

ASTM D5628

ASTM D7136

ASTM D7192

Boeing BSS 7260

Airbus AITM 1.0010

Airbus AITM 1-0057

SACMA SRM 2R-94



Technical Specification:



Energy Range

0.30 - 405 J
(0.22 - 299 ft-lb)

Impact Speed

0.77 - 4.65 m/s
(2.53 - 15.3 ft/s)

Drop Height

0.03 - 1.10 m
(1.18 - 43.3 in)

Drop Weight

1.00 - 37.5 kg
(2.20 - 82.7 lbs)
