THERMAL MECHANICAL ANALYZER

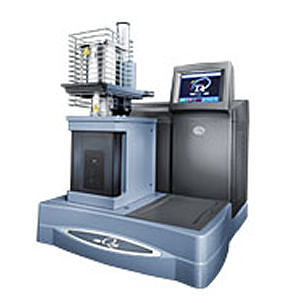

The TA Q400 EM is a high- performance,  research-grade thermo mechanical analyzer (TMA), with    unmatched    flexibility  in operating    modes,    test    probes, fixtures, and available signals. For standard TMA applications, the Q400 delivers the same performance and reliability. It is ideal for research, teaching, and quality control applications, with performance equivalent to competitive research models.







Technical Specification:



Temperature Range (max)

-150 to 1,000 °C

Temperature Precision

±1°C

Furnace Cool Down Time(air cooling)

<10 min from 600 °C to 50°C

Maximum Sample Size – solid

26 mm (L) x 10 mm (D)

Maximum Sample Size – film/fiber Static Operation

26 mm (L) x 1.0 mm (T) x 4.7 mm (W)

Dynamic Operation (Q400 EM only)

26 mm (1.) x .35 mm (T) x 4.7 mm (W)

Measurement Precision

±0.1%

Sensitivity

15 nm

Displacement Resolution

<0.5 nm

Dynamic Baseline Drift

<1μm (-100 to 500 °C)

Force Range

0.001 to 2 N

Force Resolution

0.001 N

Frequency (Q400 EM only)

0.01 to 2 Hz

Mass Flow Control

Included

Atmosphere static or controlled flow

Inert Oxidizing or Reactive Gases

Standard

Included

Stress/Strain (Q400 EM only)

Included

Creep (Q400 EM only)

Included

Stress Relaxation (Q400 EM only)

Included

Dynamic TMA (DTMA) (Q400 EM only)

Included

Modulated TMA™ MTMAN
(Q400 EM only)

Included
