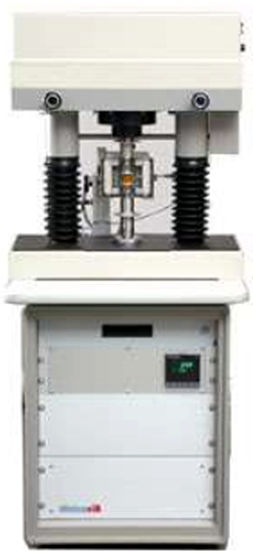

Dynamic Mechanical Analyzer

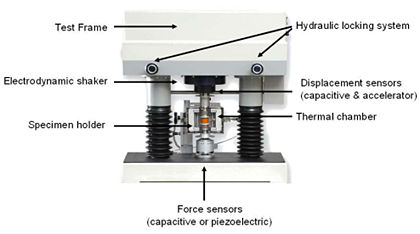

DMA is a measuring instrument which is used to determine the dynamic characteristics of materials. It applies a dynamic oscillating force to a sample and analyze the material's response to that cyclic force. Basically, DMA determines changes in sample properties resulting from changes in five experimental variables: temperature, time, frequency, force, and strain.





This instrument can be used to characterize mechanical and/or thermal properties of a great numbers of materials including Polymers, Elastomers, Composites, Metals and metallic alloys, Ceramics, glass, Adhesives, Bitumen (solid and pasty), Paint and varnish (gels or films), Cosmetics (gels, spray), Oils, Biomaterials, Leather, skin hair.

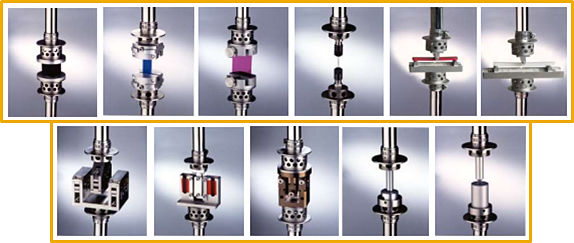

Grips



Force (N)

Maximum (+/-)

100



Minimum (+/-)

0.002



Resolution

0.000024

Displacement (mm)

Dyn Mini (+/-)

1



Dyn Maxi (+/-)

6000



Precision (+/-)

0.1



Accuracy

0.003

Modulus (Pa)

Minimum

250



Maximum

3.10+12



Measurement range (decade) for a test

7

Tan delta

Sensibility

0.0001



Resolution

0.00001



Accuracy

Auto-calibration

Frequency (Hz)

Minimum

0.00001



Maximum

200



Maximum (option)

1000



Resolution (%)

0.01



Accuracy (%)

0.01

Temperature (°C)

Minimum

ambient



Minimum (option)

-150



Maximum

450



Maximum (option)

On request



Temperature rate (°C/min) min

0.1



Temperature rate (°C/min) max (advised)

10



Temperature rate (°C/min) min (feasible)

On request
